Hydraulic Cut-off Saw Stanley CO25

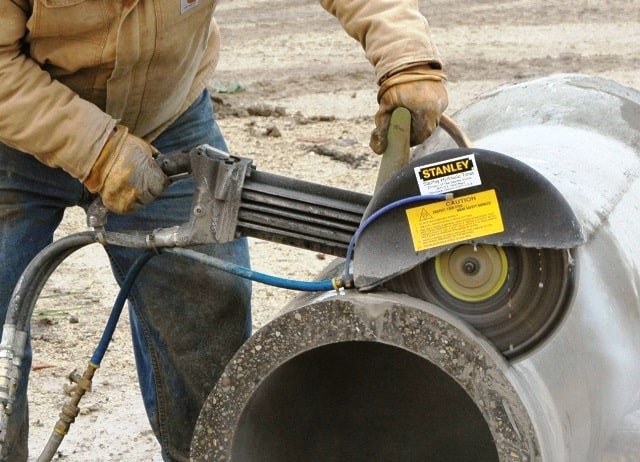

Lightweight and powerful, the Stanley CO25 Hydraulic Cut-off Saw is ideal for cutting concrete, masonry, pipe, structural steel beams and guardrail. The CO25 uses standard 14 inch (355.6 mm) abrasive or wet or dry diamond blades. The CO25 multi-hand position cast aluminum handle with interlocking safety trigger provides ergonomic grip at a variety of tool angles for reduced operator fatigue. Tamper-proof flow control meets ANSI specifications for speed control, reducing the risk of over-speeding the cutting wheel. Internal blade brake retards spindle rotation upon release of trigger to greatly reduce wheel coast time.
Adjustable cast aluminum wheel guard is designed to provide excellent durability, allow cutting near obstructions and minimize tool weight. Available handle extension kit provides for upright operation to meet operator preference.
Heavily weighted frame of the Stanley saw cart provides a stable platform for slab cutting. Handle-mounted control provides convenient adjustment of cutting depth.
Features:(+) 7-9 gpm (26-34 lpm) operating range (+) 4-3/4 iinch (12 cm) deep maximum cut (+) Adjustable wheel guard (+) HYREVZ™ gear-type motor (+) Flow regulator to prevent overspeed (+) Safety trigger
|
|||||||||||||||||||
CO25 | |||||||||||||||||||
TECHNICAL
|
Wheel Capacity |
350 mm |
Cutting Capacity |
10 cm |
Hydraulic Flow |
26-34 lpm |
Hydraulic Pressure |
105-140 bar |
Weight |
9 kg |
Length |
53 cm |
Width |
28 cm |
Couplers |
HTMA Flush Face |
Underwater Model |
CO23 uw |
---|
Recommended together |
---|
HP12
BR67
PD45
